Insulation resistance meters are commonly known as megohm meters, or shake meters, high resistance meters, insulation resistance testers, etc. It is reflected by insulation resistance. The product insulation resistance which is measured refers to the insulation resistance between the live part and the exposed non-live metal part(case). Using an insulation tester for measurement can effectively protect the safety of maintenance personnel.

Product Features:

1. ES200 s capable of measuring insulation resistance, and also innovatively increases the voltage measurement function.

2. Equipped with standard resistance, in the comparison measurement mode, the measured resistance value is compared with the standard resistance to ensure the measurement accuracy.

3. Three measurement modes: timing measurement, comparison measurement, continuous measurement and omnidirectional measurement.

Product Specification:

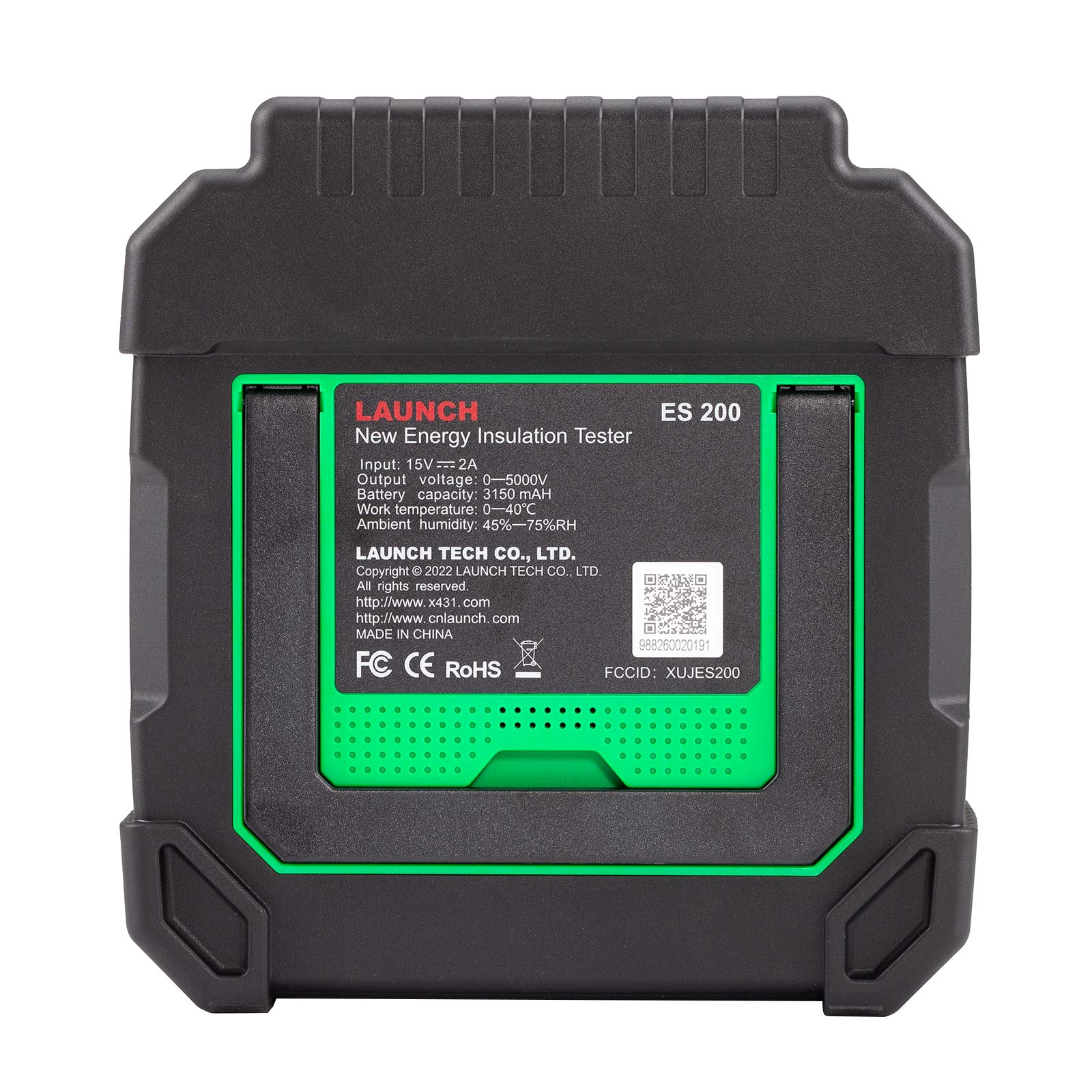

ES200 Specification

Battery: 3150mAh
Display: 5''
Working Temperature: 0~50℃
Dimensions: 180*174*65.5(mm)
Weight: 1.7kg

AC and DC Voltage Test Performance Parameters

Voltage Type                               DC Voltage                AC Voltage
Measuring Range                       ±30~±600V                30~600V(50/60Hz)
Resolution                                  1V                              1V
Measurement Accuracy              ±3%                           ±3%

Insulation Resistance Test Performance Parameters

Test Voltage:                      500V                                         1000V                                       2000V                                       5000V
Measuring Range:             0.0MΩ～20GΩ                          0.0MΩ～40GΩ                         0.0MΩ～100GΩ                        0.0MΩ～1000GΩ
Open Circuit Voltage:        DC500V(0～20%)                     DC1000V(0～20%)                   DC2000V(0～20%)                   DC5000V(0～20%)
Measurement Accuracy:    0.0～99.9MΩ: ±(3%+5)            0.0～99.9MΩ: ±(3%+5)             0.0～99.9MΩ: ±(3%+5)             0.0～99.9MΩ: ±(3%+5)
                                         100MΩ～9.99GΩ: ±(5%+5)      100MΩ～9.99GΩ: ±(5%+5)       100MΩ～9.99GΩ: ±(5%+5)      100MΩ～9.99GΩ: ±(5%+5)
                                         10.0GΩ～20.0GΩ: ±(10%+5)    10.0GΩ～40.0GΩ: ±(10%+5)    10.0GΩ～100GΩ: ±(10%+5)   10.0GΩ～99.9G: ±Ω(10%+5)
Short Circuit Current：    <3.0mA

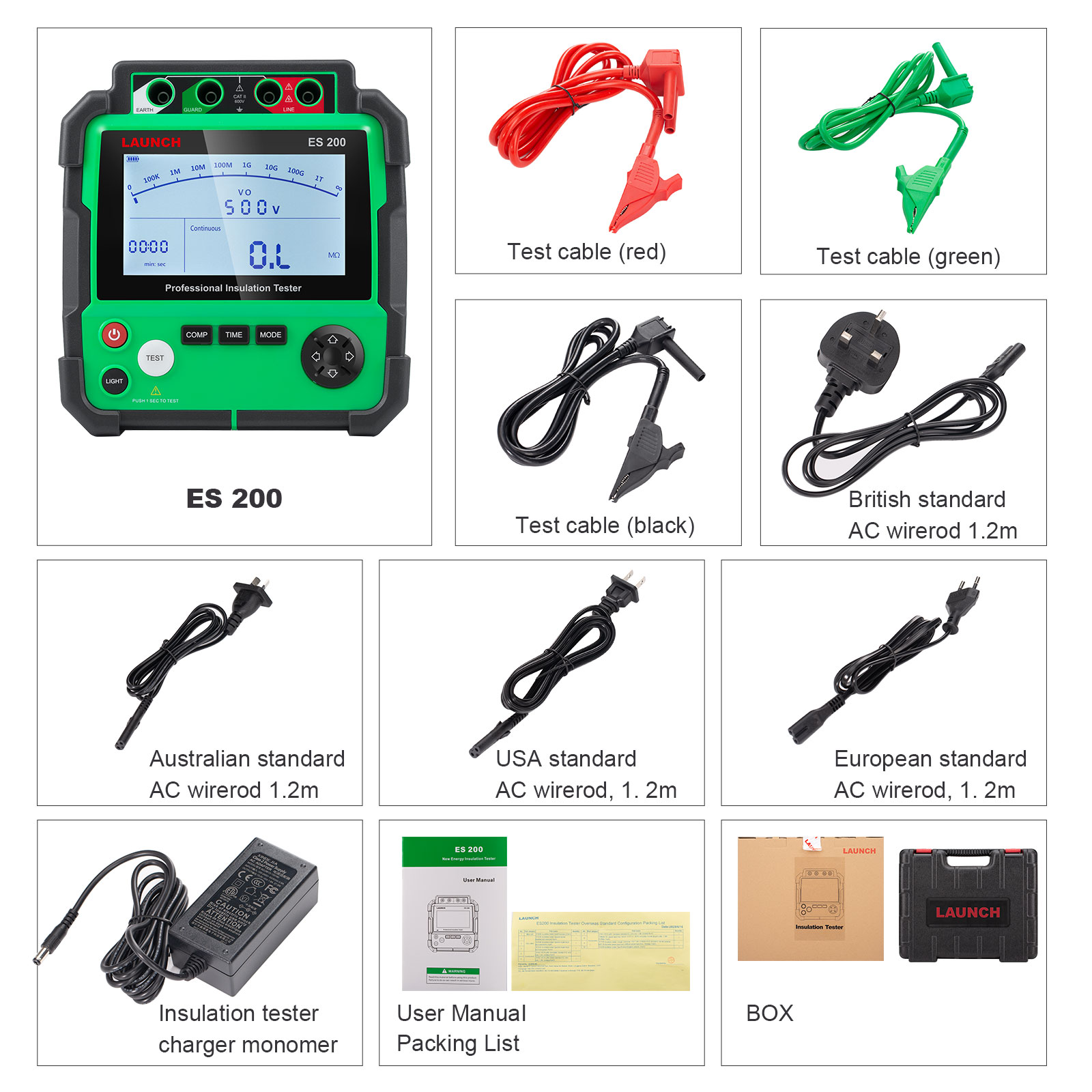

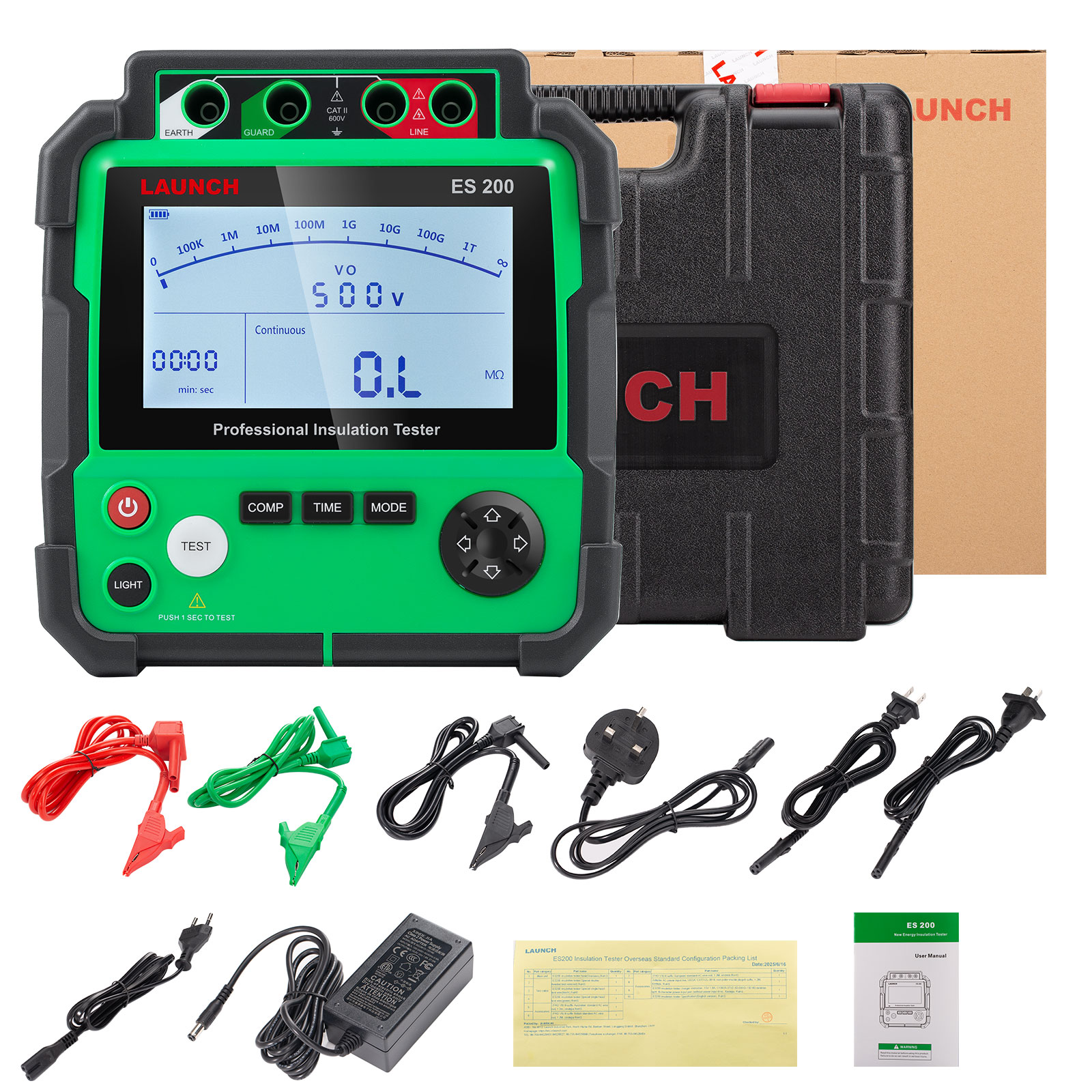

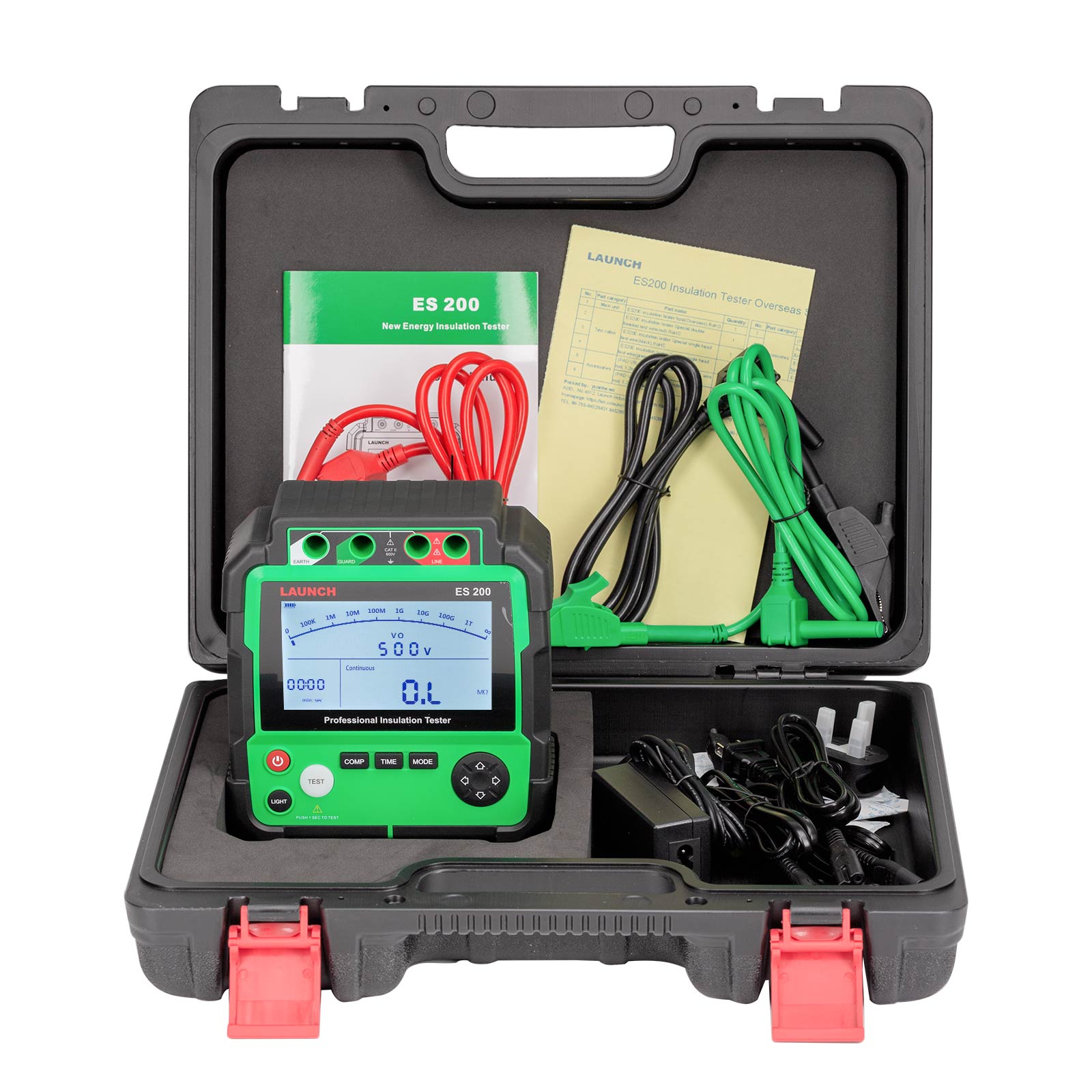

Package includes:

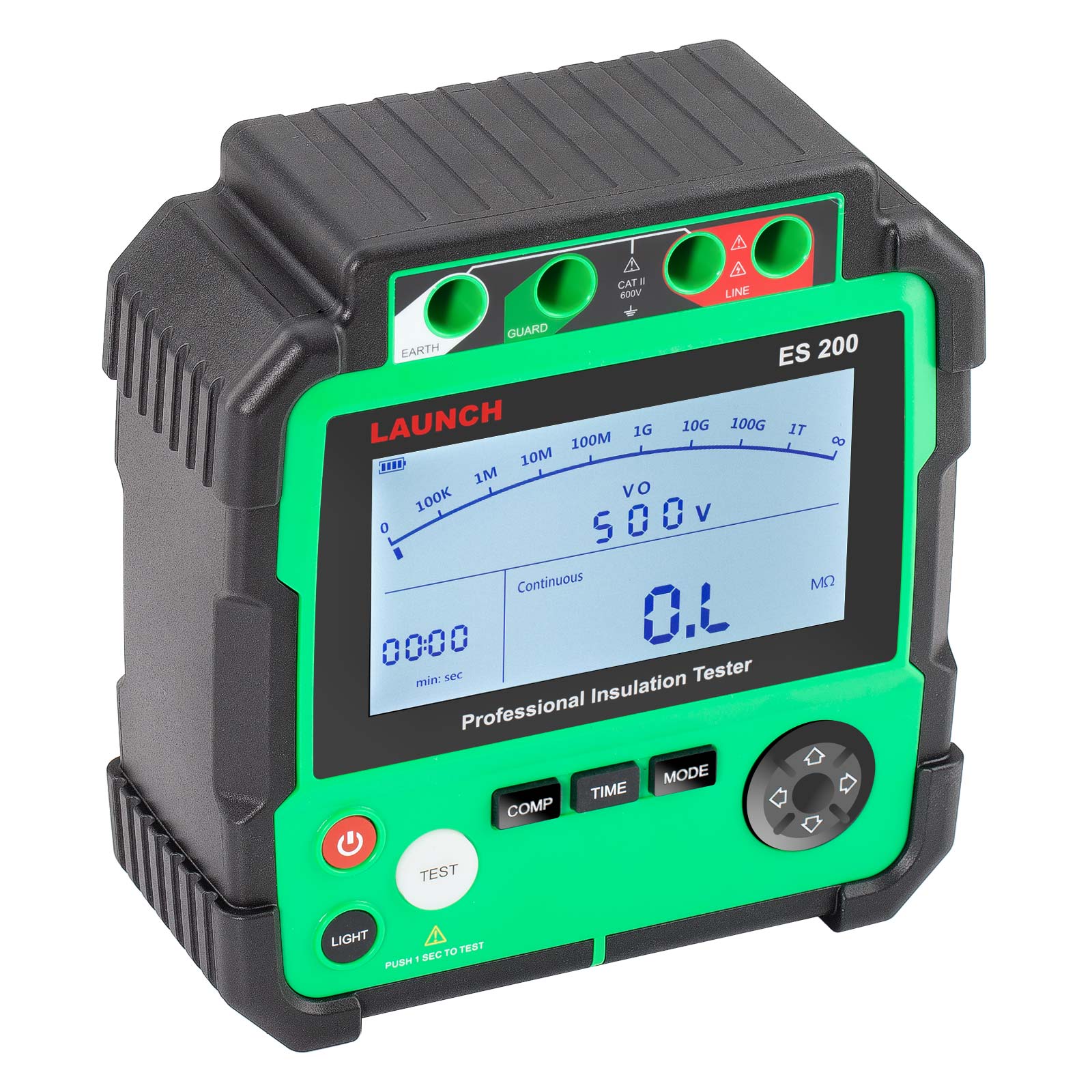

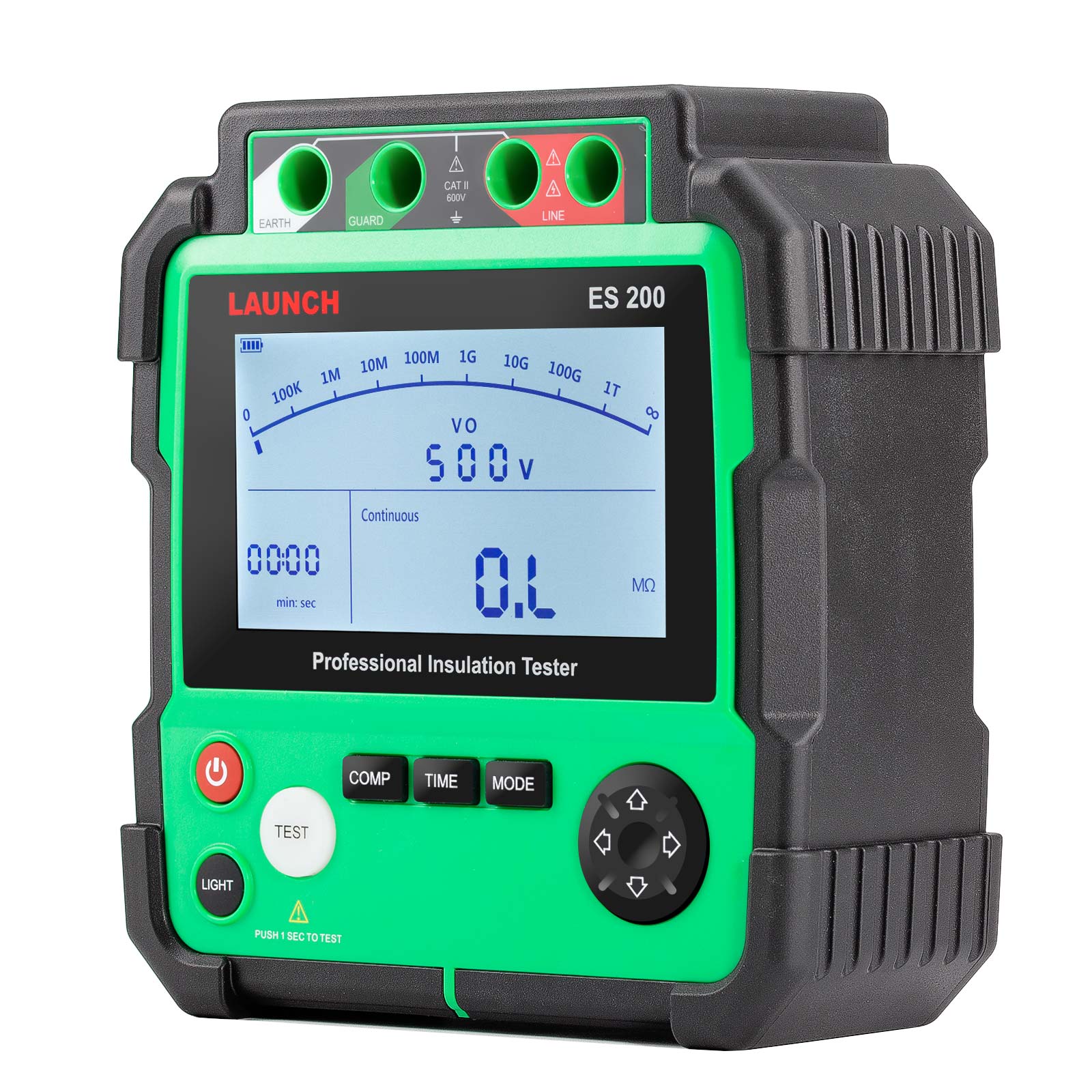

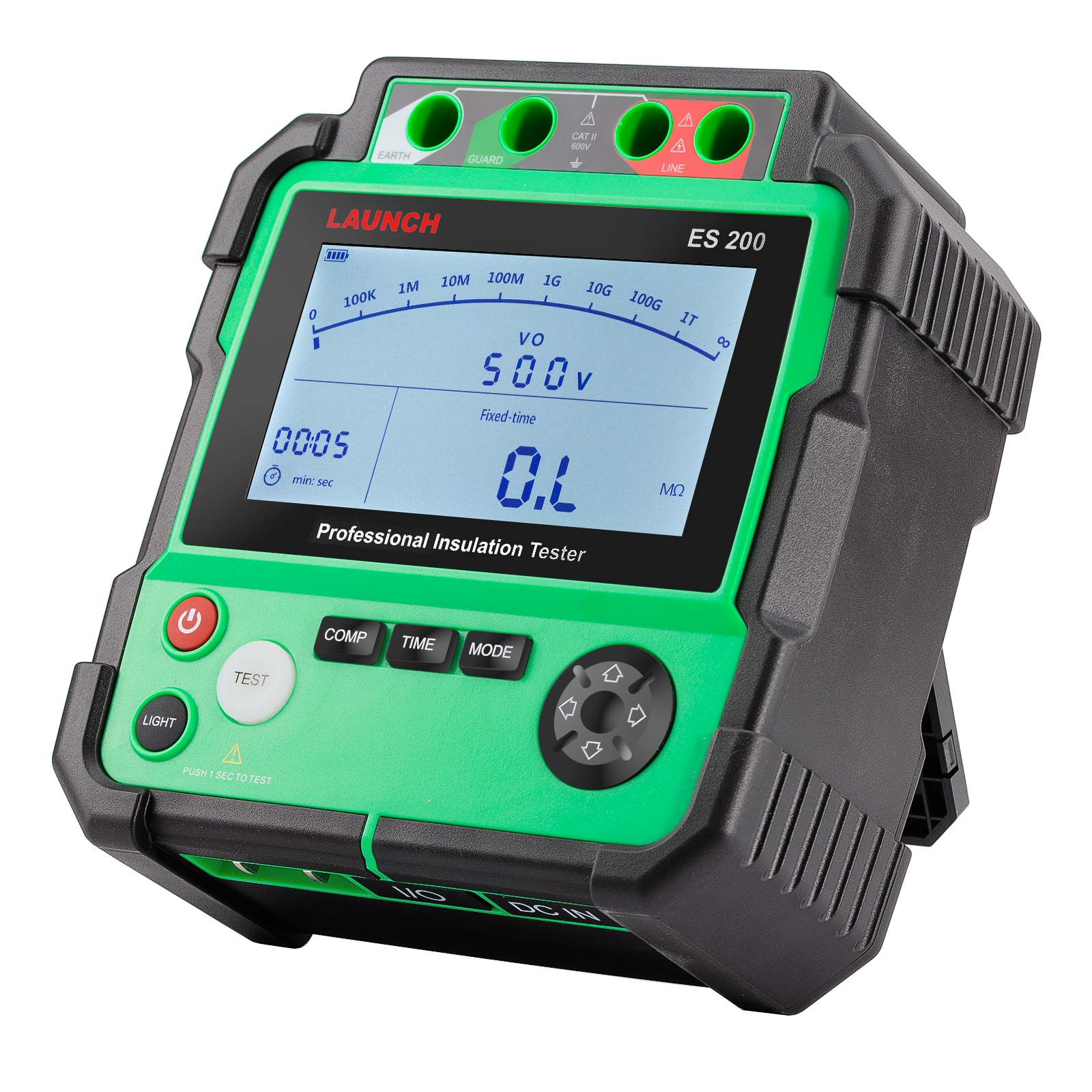

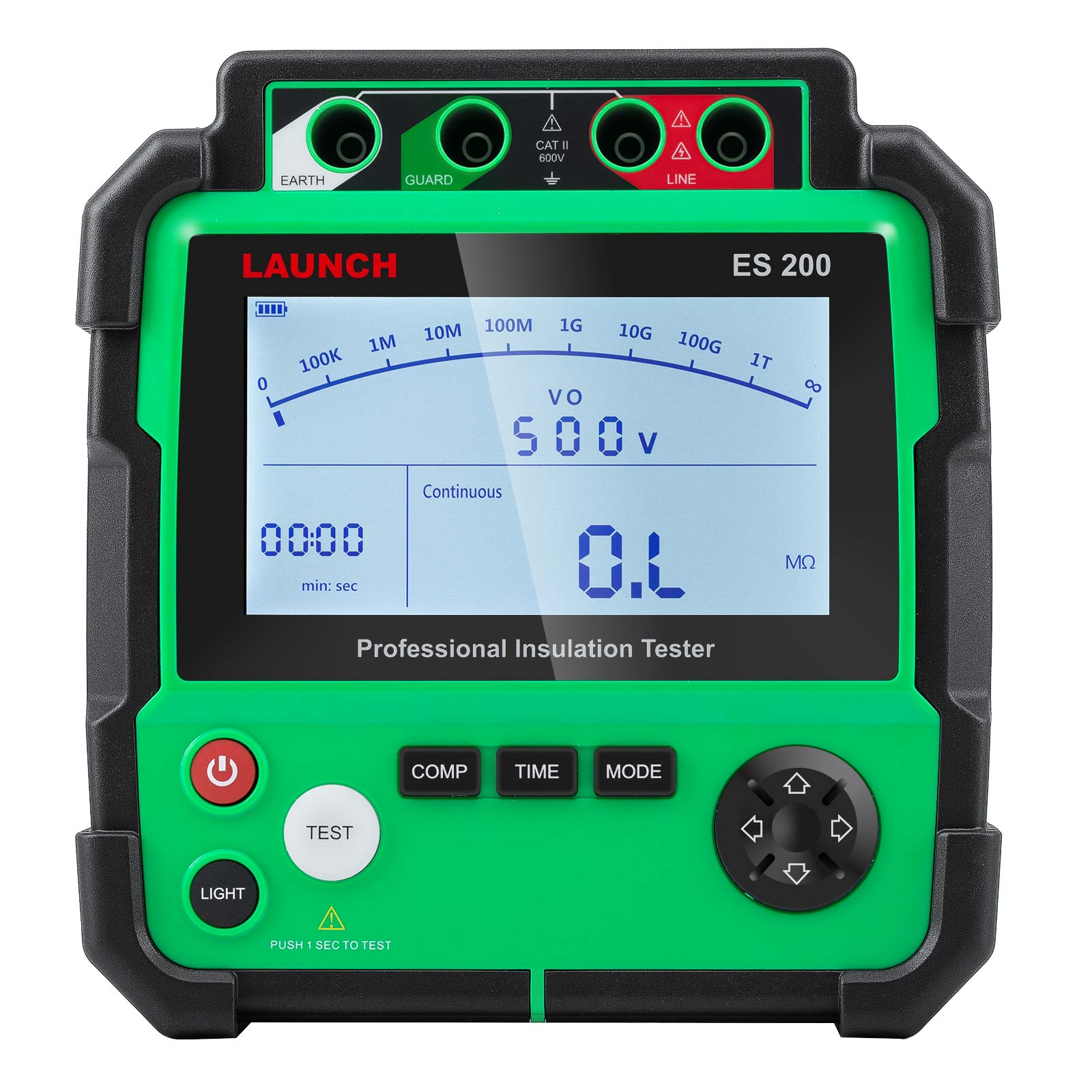

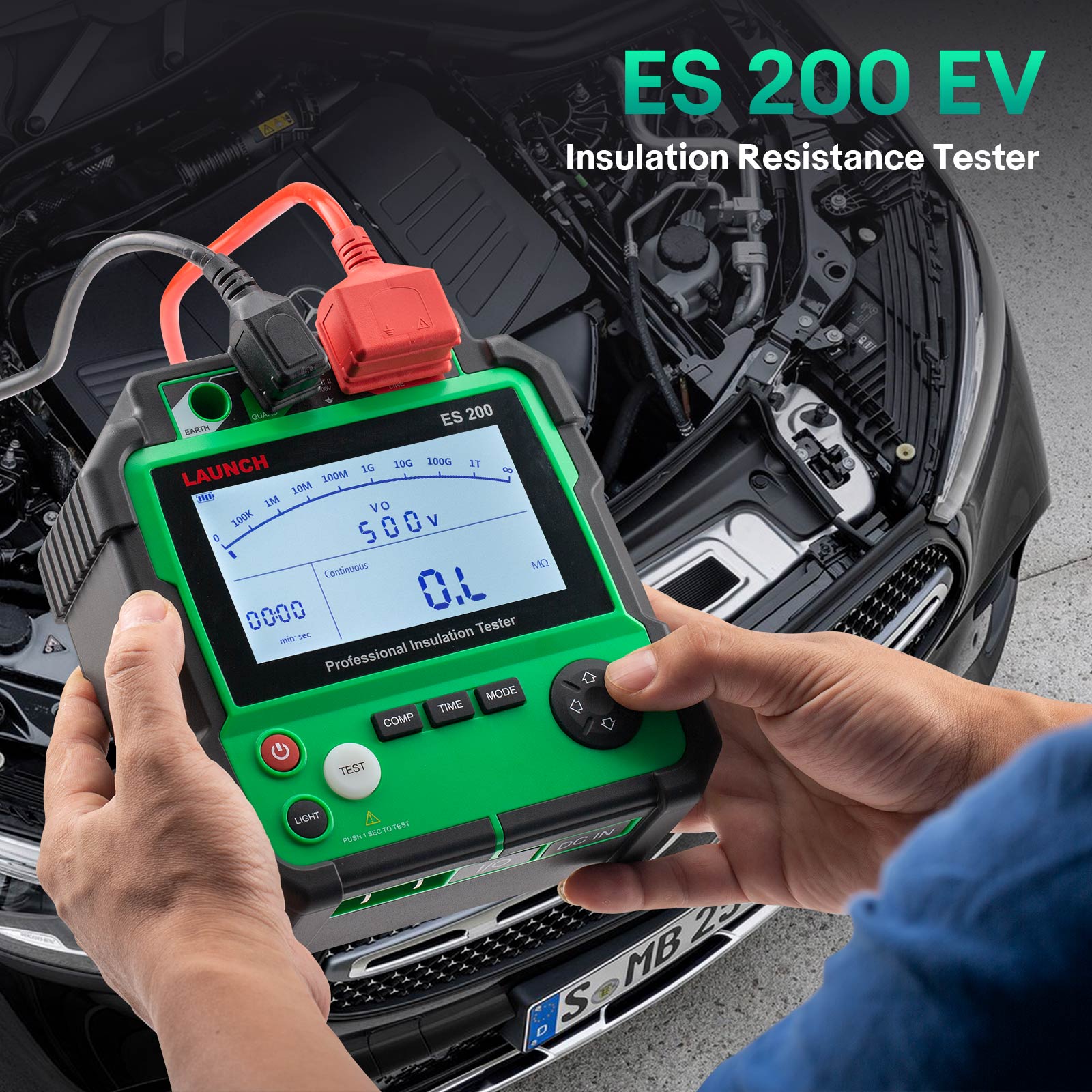

1pc x LAUNCH ES200 EV Insulation Resistance Tester
