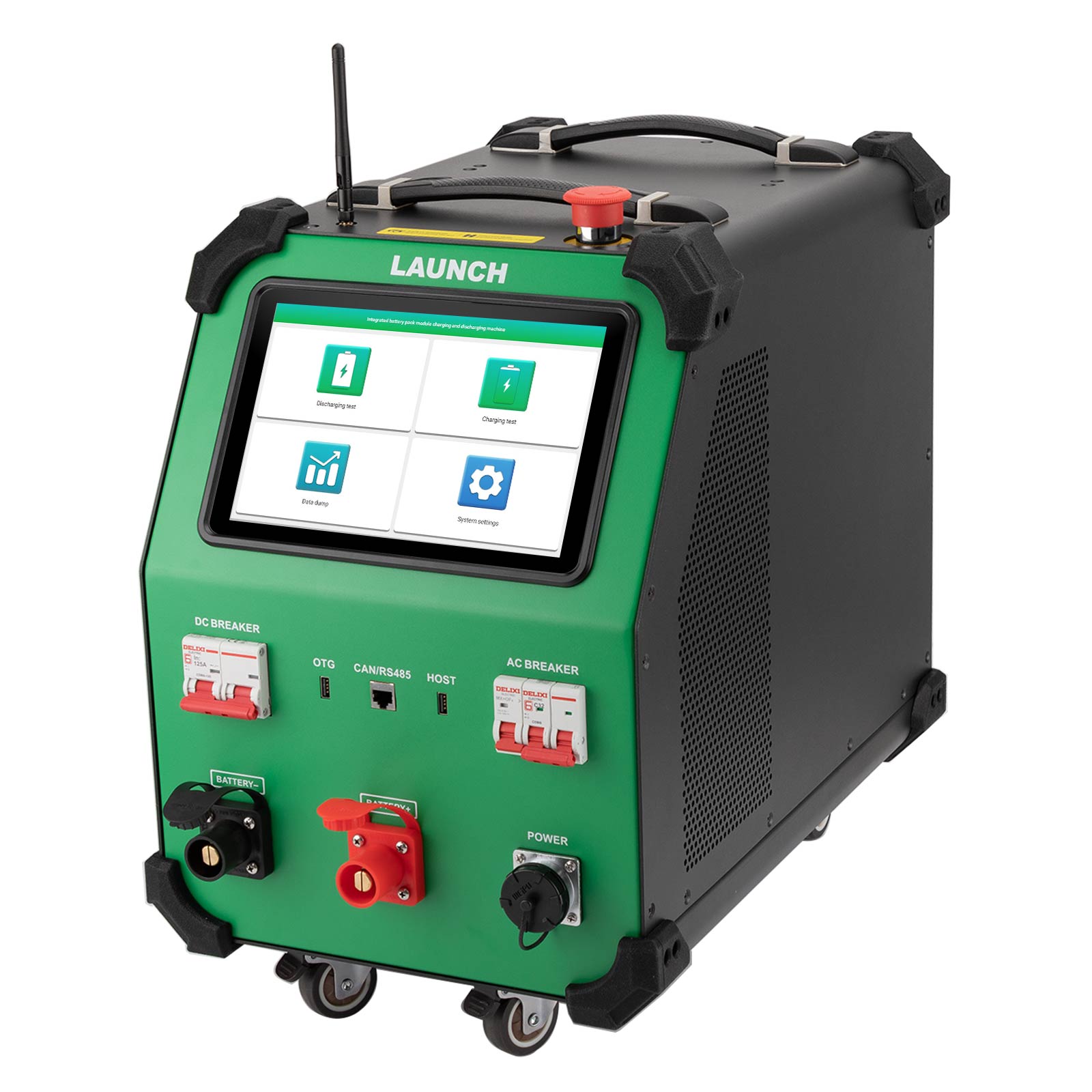

X431 Mega Sconti Spedito da UE/UK LAUNCH EVP711 EV Battery Pack Module Charging and Discharging Device

Serie No.SO800 Disponibile. Storia 176 vendite.
0 valutazione
|
Prezzo al dettaglio: €4,504.00
EUR 4,504.00 USD 4,999.44 GBP 3,905.87
Launch X431 2 Anni Aggiornamenti Gratis,Supporta Lingua Italiana:
2 anni di aggiornamenti gratuiti,Clicca qui per acquistare >>

100% Originale Launch X431 PRO Elite,Spedito da UE,No tasse >>

X431 PAD VII Elite/PRO Elite/X431 V/V+/PRO TT/PRO5/PAD VII con ottimo prezzo,UE spedizione no tasse!
Contattarci VIP Prezzo:
Whatsapp: +86 18580434781
Spedizione:
Spedizione Gratuita Servizio di Trasporto EspressoTempo di Consegna: 8-12 giorni lavorativi.I dettagli »
Peso:
40.6KG
Pacchetto:
71cm*58cm*43cm ( Inch: 27.95*22.83*16.93 )
Ritorno:
Rimborso entro 30 giorni, il compratore paga il trasporto di ritorno. I dettagli»

Descrizione del prodotto

Con il dispositivo di carica e scarica del modulo pacco batteria EV LAUNCH EVP711, è possibile eseguire la manutenzione su batterie agli ioni di litio e al nichel-metallo idruro, con particolare attenzione alle batterie al litio. L'EVP711 offre misurazioni SOC/SOH, un'ampia gamma di tensione e molteplici modalità di carica/scarica per una maggiore sicurezza ed efficienza. Le principali caratteristiche di sicurezza includono la protezione da sovratensione, sovracorrente, surriscaldamento, ecc.

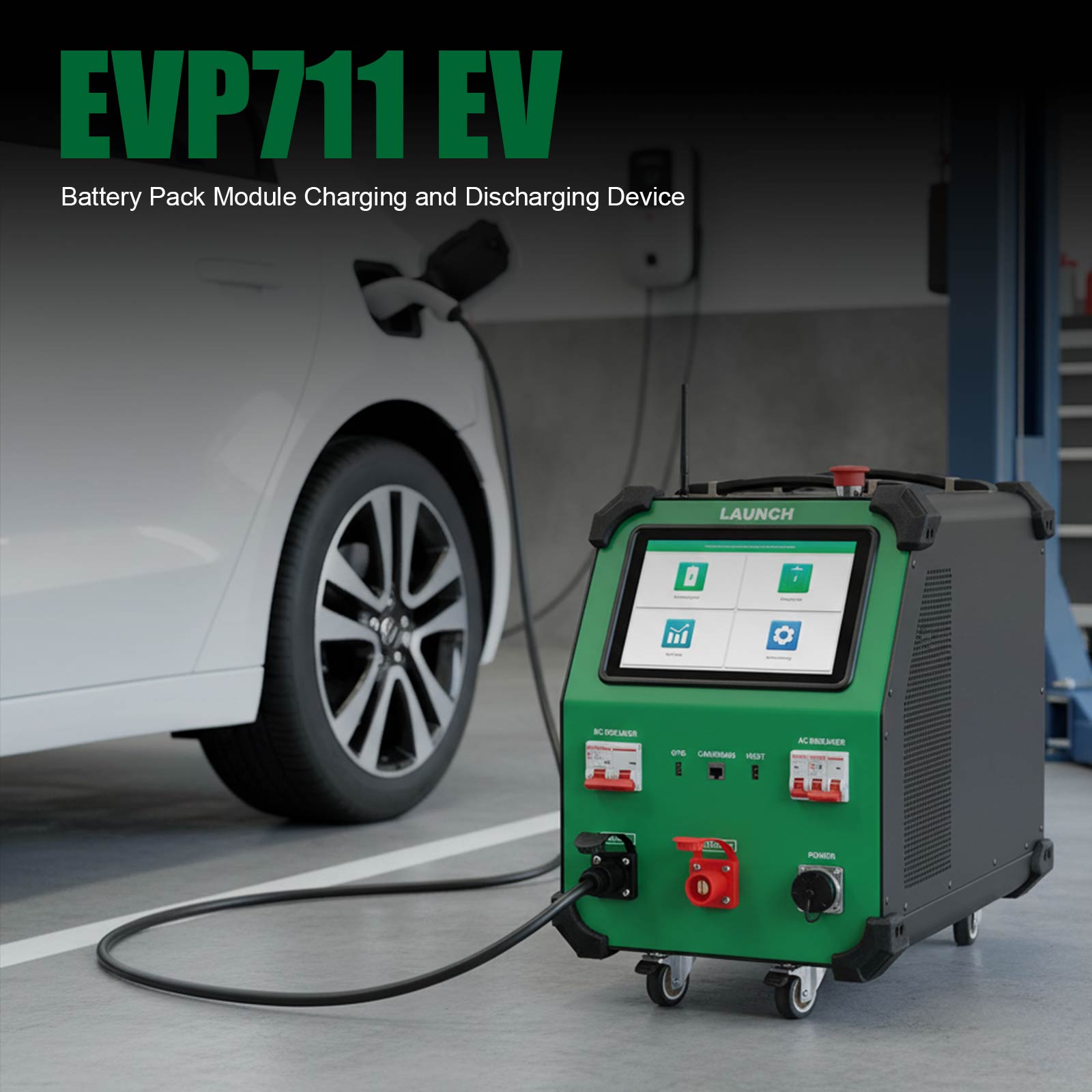

LAUNCH EVP711 EV Battery Pack Module Charging and Discharging Device


When the detection tool indicates an issue with the internal cells of the battery pack, technicians typically replace the entire module (as repairing individual cells is challenging and time-consuming, hereby ref. to EVB624/ELB300 for cells balancing). After replacing the module, the EVP711 can be used for balancing. Once the voltage of the module is consistent, it can be installed into the vehicle.

During the balancing process with the balancer, it may take a considerable amount of time to complete. In such cases, you can use the EVP711 to charge the battery module first. When the voltage levels are approximately equal, use an equalizer(such as EVB624/ELB300) to balance the cell voltage consistency. Combining the use of the equalizer and the charge&discharge tool improves repair efficiency.

Product Features:

1. Supports charging and discharging maintenance for all common lithium-ion and nickel-hydrogen batteries on the market.

2. Adopts state-of-the-art charge&discharge testing technology to prevent interference with the BMS system.

3. Allows for the customization of charging and discharging rules.

4. Takes a wide voltage design and built-in multiple charging and discharging modes to meet the voltage and current requirements of various battery pack modules, ensuring safety while enhancing charging and discharging efficiency.

5. Safety Protections: Provides warning alerts for reverse polarity, high temperature, overcurrent, fan malfunction, high voltage, and excessive current to safeguard hardware safety.

Usage Guidelines

Ensure that the device is used only by professional technicians or individuals with appropriate training.
Refer to the user manual for detailed instructions on operating the device.
Use only original products approved by Launch to avoid device damages or malfunctions.
Do not attempt unauthorised modifications or repairs on the device.

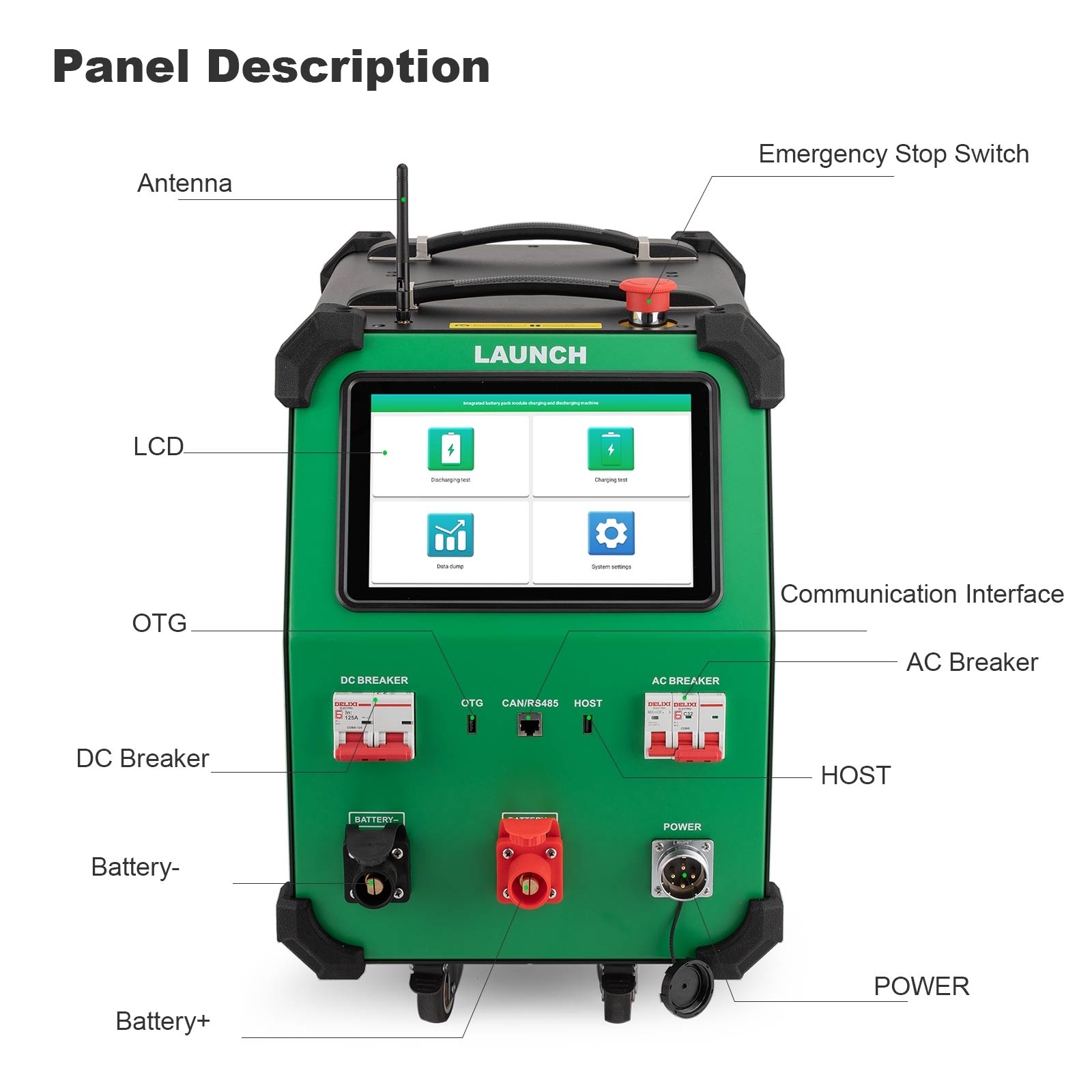

Product Overview

EVP711 is an EV battery pack module charging and discharging device developed by Launch. It adopts the most advanced charging and discharging technology, according to the charging and discharging characteristics of lithium and Ni-MH batteries, and has built-in various test and maintenance modes, which are suitable for the discharge, charging, cycle charging and discharging tests of various lithium and Ni-MH batteries on the market. The device adopts an intelligent operating system, so that users and managers can easily and scientifically maintain and manage the battery pack, thus extending the service life of the battery pack.

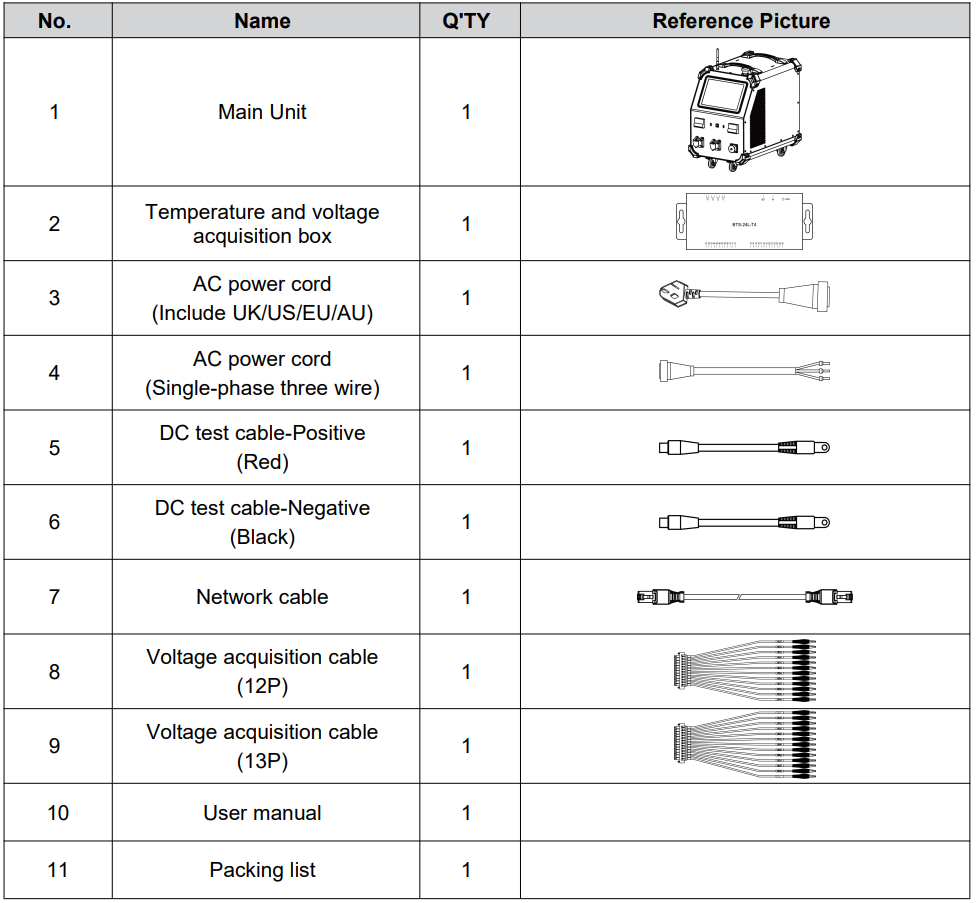

Product composition and accessories

  • The device is mainly composed of the main unit, temperature and voltage acquisition box, discharge cables, etc.
  • The following accessories are for reference only. For product configuration details, please consult the local agency or check the package list supplied with this device.
LAUNCH EVP711 EV-X431.it

Operating Instructions

  1. Connect the main unit to the temperature and voltage acquisition box using the provided cables.
  2. Power on the device following the specified procedure in the user manual.
  3. Follow the on-screen prompts to perform the desired functions related to temperature and voltage acquisition.
  4. After usage, power off the device and disconnect all cables properly for storage.

Product Specifications:

Power input: AC90-264V,
Group Terminal Voltage Accuracy:≤±(0.5%FS+0.3V),resolution:0.01V
Single Cell Voltage Accuracy: ≤± (0.1%FS+5mV), resolution: 0.01V
Test Current Accuracy:≤± (1%FS+0.2A), resolution: 0.1A
Charging&Dsicharging Voltage Range: DC 2~400V
Charging Current Range:0~100A, maximum power: 4.4kw
Discharging Current Range: 0~100A, maximum power 7.2kw
Data Communication:RS485
Display: 10.1' LCD
Charging Control: Constant current charging + constant voltage charging
Discharging Mode: Constant current discharging
Dimensions: 551*349*598 (mm)

Frequently Asked Questions

  • Q: Can I use third-party accessories with the EVP711?
  • A: It is recommended to use only original products approved by Launch to prevent device damage or issues.
  • Q: Who should use the EVP711?
  • A: The device is intended for professional technicians or maintenance and repair personnel with appropriate training.

Fault Analysis and Troubleshooting

Compliance Information

FCC ID: XUJEVP711

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

  1. This device may not cause harmful interference,
  2. This device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, under part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used per the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

RF Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
This device is in compliance with the essential requirements and other relevant provisions of Radio Equipment Directive 2014/53/EU. The RF frequencies can be used in Europe without restriction.


Warranty

This warranty applies only to users and distributors who have purchased Launch’s products through regular procedures.
Launch shall provide a warranty against material or craftsmanship defects for 15 months from the date of delivery on its electronic products. Damages to the device or its components caused by abuses, unauthorised modifications, uses for a purpose other than for which it is intended, or operations not following the manner specified in the manual, etc., are not covered by this warranty. Compensation for the damage to the instrument of the automobile due to the defect of the device is limited to repair or replacement.
Launch is not responsible for any indirect or accidental loss. Launch will judge the attributes of the equipment damage according to its specified test method. None of Launch’s dealers, employees and business representatives has the authority to make any confirmations, reminders or promises related to the company’s products.

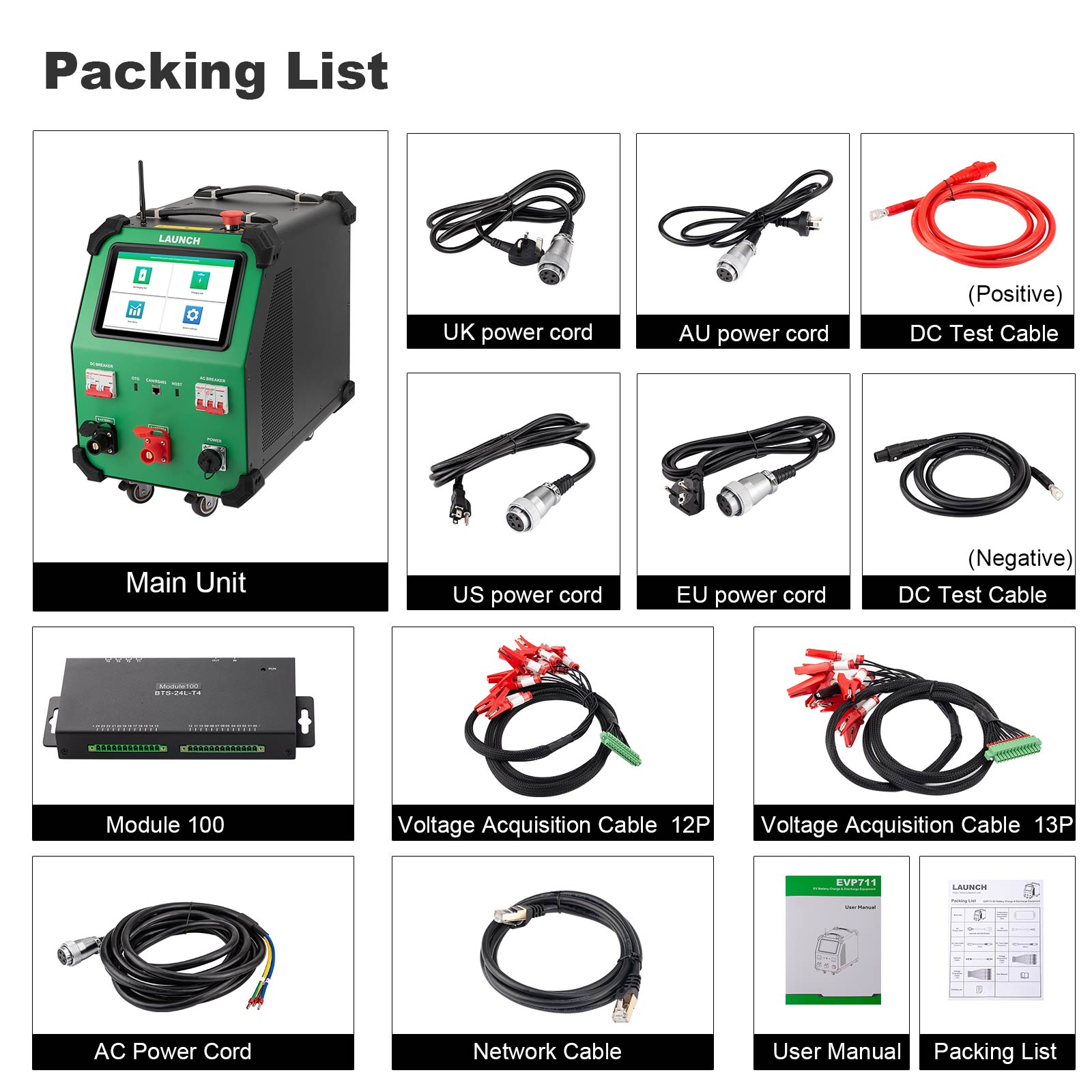

Package includes:

1pc x main unit
1pc x temperature and voltage acquisition box
1pc x AC power cord(include UK/US/EU/AU)
1pc x AC power cord(single-phase three wire)
1pc x DC test cable-positive(Red)
1pc x DC test cable-negative(Black)
1pc x network cable
1pc x voltage acquisition cable(12P)
1pc x voltage acquisition cable(13P)
1pc x User manual
1pc x Packing list

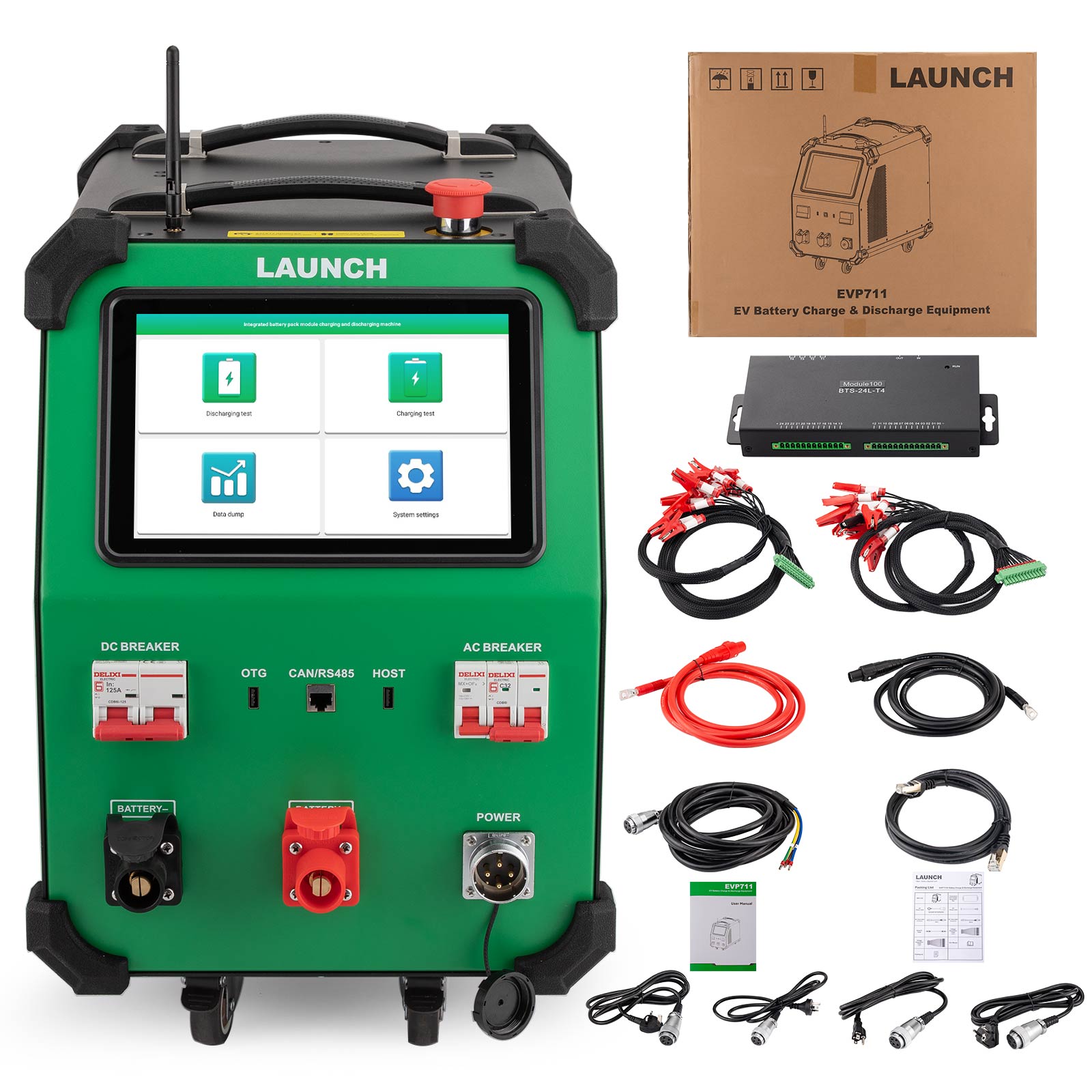

LAUNCH EVP711 EV Battery Pack Module Charging and Discharging Device-X431.it
